Motor stator rotor coil winding machine

Double station motor winding machine

Used for: Motor Stator
Working station: Two
Product description: China Apex provides automatic motor winding machine multi-working-station, motor stator winding machine, coil winding machine, stator coil production line, motor manufacturing machine
INQUIRY

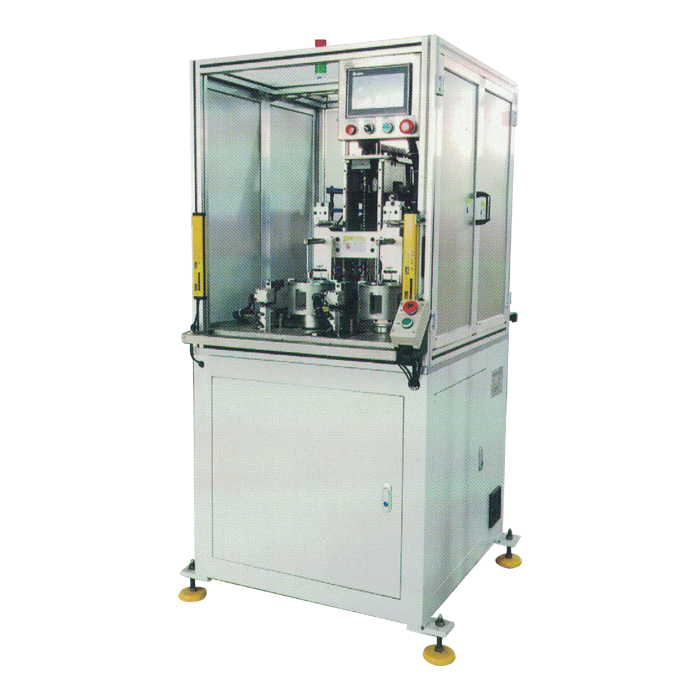

Double station inner row motor winding machine

Name: Double station inner row motor winding machine
Stator stack height: 10-80mm
Stator I.D. range: Φ35mm-Φ200mm
Max. Winding speed: 800r/min
Motor slots: 6, 9, 12, 18, 30
Air pressure: 0.5-0.8MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 8KW / 12KW
Dimension: 1510 x 810 x 2010mm (L x W x H)
Weight: 800KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
