Motor stator rotor coil winding machine

Four station motor winding machine

Used for: Motor Stator
Working station: Four
Product description: China Apex provides automatic motor winding machine multi-working-station, motor stator winding machine, stator coil machine, motor coil production line, motor inserting machine, motor die
INQUIRY

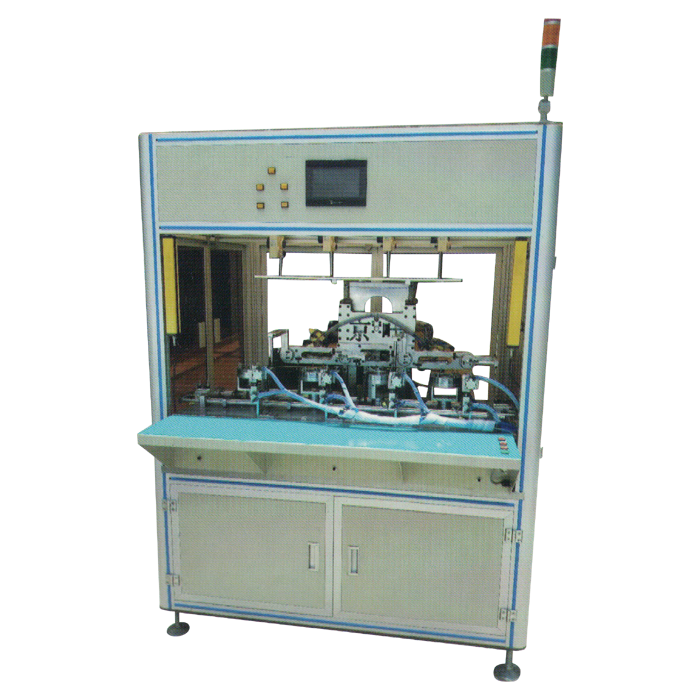

Four station inner row motor winding machine

Name: Four station inner row motor winding machine
Wire diameter range: 0.13-1.8mm
Stator stack height: 10-50mm
Max. Winding speed: 1000r/min
Suitable motor poles: 2, 4, 6, 8, 10, 12
Air pressure: 0.5-0.8MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 15KW
Dimension: 1800 x 1300 x 2000mm (L x W x H)
Weight: 400KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
