Motor stator rotor coil winding machine

Motor coil winding machine 4-station

Used for: Motor Stator
Working station: Four
Product description: China Apex provides automatic motor winding machine, motor stator winding machine, motor stator coil winding machine, coil production line, motor manufacturing equipment
INQUIRY

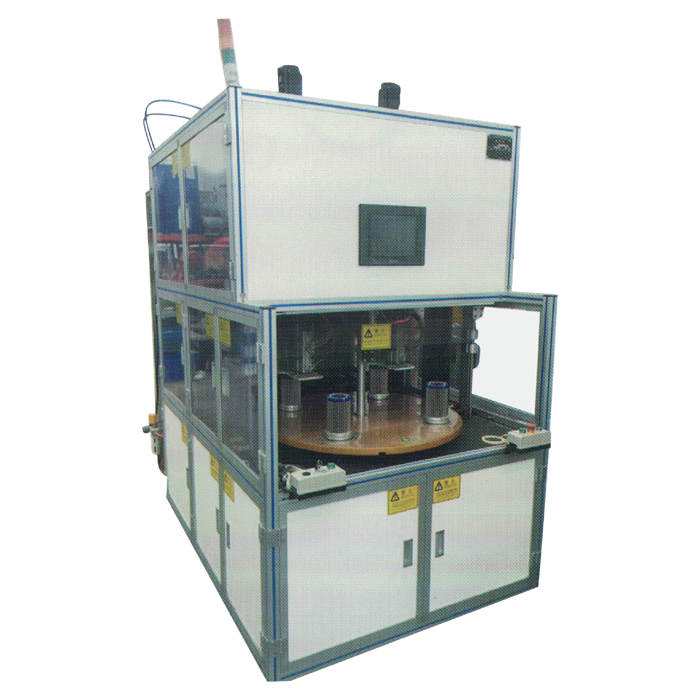

Automatic motor coil winding machine 4-station

Name: Automatic motor stator coil winding machine (with 4-working-station)
Wire diameter range: 0.15-1.5mm
Stator stack height: 15-80mm / 15-120mm
Max. Winding speed: 2000-3000r/min
Suitable motor poles: 2, 4, 6, 8
Air pressure: 0.4-0.6MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 7.5KW
Dimension A style: 1750 x 840 x 2200mm (L x W x H)
Dimension B style: 2045 x 1200 x 2230mm (L x W x H)
Weight: 1600KG / 2000KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry, or contact us directly!
