Motor stator rotor coil winding machine

Motor coil winding machine 2-station

Used for: Motor Stator
Working station: Two
Product description: China Apex provides automatic motor winding machine, motor stator winding machine, motor stator coil winding machine, stator coil production line
INQUIRY

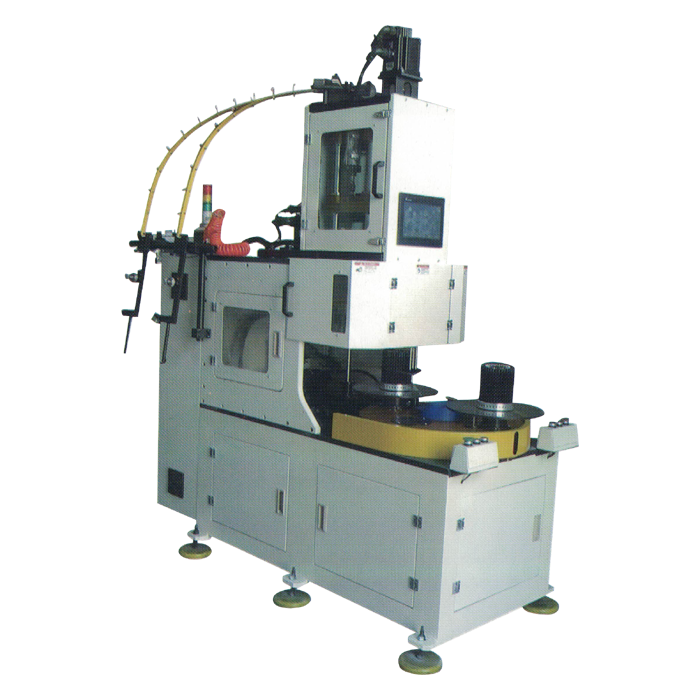

Automatic motor coil winding machine (with 2-working-station)

Name: Automatic motor coil winding machine (with 2-working-station)
Stator stack height: 18-150mm
Stator I.D. range: Φ40mm-Φ10mm
Max. Winding speed: 1500-3000r/min
Motor slots: 16-36
Air pressure: 0.5-0.8MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 5KW
Dimension: 2000 x 1350 x 2300mm (L x W x H)
Weight: 1500KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry, or contact us directly!
