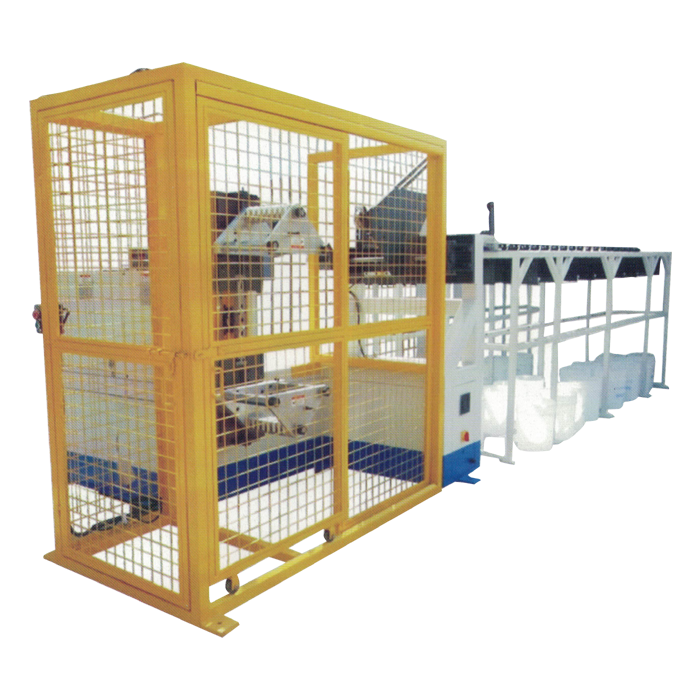

Coil winding machine for high power motor

Coil winding machine for high power motor

1. Name: Coil winding machine for high power motor
2. Models                        650                 900                         1200
3. Wire diameter      0.4-1.5mm          0.4-1.5mm             0.4-1.5mm
4. Die diameter           ≤650mm            ≤900mm               ≤1200mm
5. Working station         One                    One                        One
6. Trip stop distance     ≤400mm           ≤550mm                 ≤550mm
7. Air pressure              ≥0.4MPa           ≥0.4MPa                 ≥0.4MPa
8. Power supply     380v/50/60HZ        380v/50/60HZ         380v/50/60HZ
9. Power                      1.5KW                  3.0KW                   5.5KW
10. Weight                     950KG                1020KG                  1150KG
11. Dimension    1500x170x1500mm   1750x190x1800mm    2300x280x2000mm



Main features: This machine is mainly used for winding high-power motor coils. The equipment adopts a special controller to realize automatic winding, automatic wire arrangement, cross slot, automatic wax pipe, product setting, etc.

After the winding is completed, the die mold can expand and contract automatically (needn’t to remove the die mold and taking out the coil). In this way, it greatly reduces the labor intensity of workers and improves the work efficiency. The die molds of the same series of motor stator coils can be adjusted, which can meet the requirements of multi-strand winding, also the tension is stable and adjustable, so as to ensure the standardized production of products.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
