Motor slot insulation paper machine

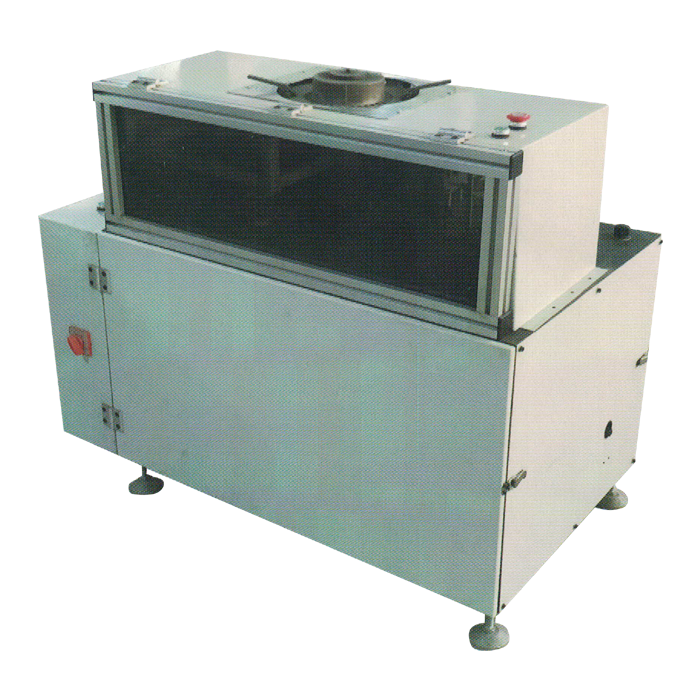

Single head Motor Slot Insulation Paper Machine

1. Name: Single head Motor Slot Insulation Paper Machine
2. Stator stack height: 10-100mm / 10-200mm
3. Max Stator O.D.: Φ120mm / Φ210mm
4. Stator I.D. range: Φ17-Φ100mm / Φ17-Φ150mm
5. Height of edge folded: 2-4mm / 4-6mm
6. Thickness of insulation paper: 0.15-0.3mm / 0.15-0.5mm
7. Paper feeding length: 12-40mm
8. Production rate: 0.4-0.8 second/slot
9. Power supply: 380v/50HZ, 3 Phase, 4-wire
10. Power: 1.5KW

This machine is used for the insulation paper cutting, forming and inserting into the stator slots to all kinds of motor stators, to isolate the stator slots against motor windings.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
