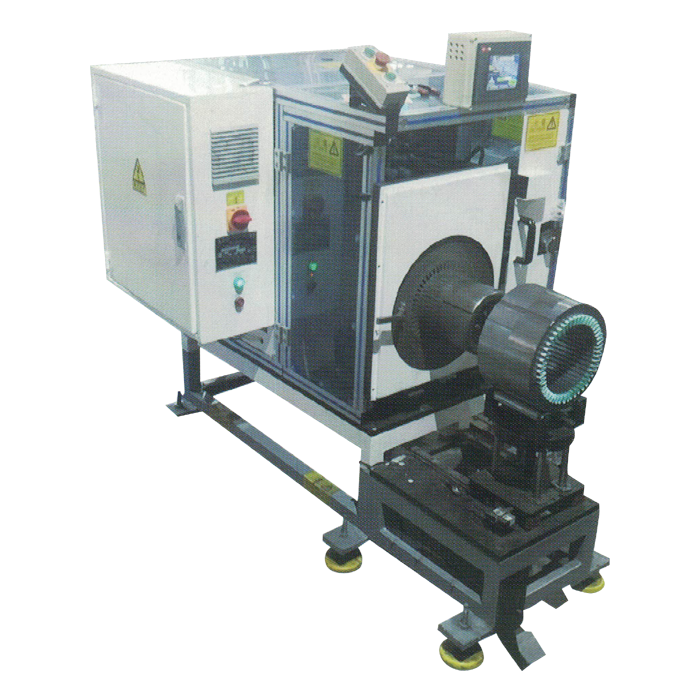

Horizontal Motor stator slot insulation paper machine

1. Name: Motor Stator Slot Insulation Paper Machine
2. Stator stack height: 15-200mm / 50-300mm
3. Max Stator O.D.: Φ250mm / Φ300mm
4. Stator I.D. range: Φ45-Φ170mm / Φ50-Φ200mm
5. Height of edge folded: 3-8mm
6. Thickness of insulation paper: 0.15-0.35mm
7. Paper feeding length: 18-55mm / 30-50mm
8. Production rate: 0.6-1.0 second/slot
9. Air pressure: 0.5-0.8MPa
10. Power supply: 380v/50HZ, 3 Phase, 4-wire
11. Power: 1.15KW
12. Dimension: 1500 x 1200 x 1650mm (L x W x H)
13. Dimension: 1600 x 1300 x 950mm (L x W x H)
14. Weight: 600KG / 700KG


This machine is used for the insulation paper cutting, forming and inserting into the stator slots to all kinds of motor stators, to isolate the stator slots against motor windings.
