Motor slot insulation machine

Slot insulation paper machine for Fan Motor

Used for: Motor Stator
Used for: Fan motor
Product description: China Apex provides automatic motor winding machine,stator coil winding machine,rotor winding machine,stator coil production line, motor winding & inserting,motor slot insulation paper machine
INQUIRY

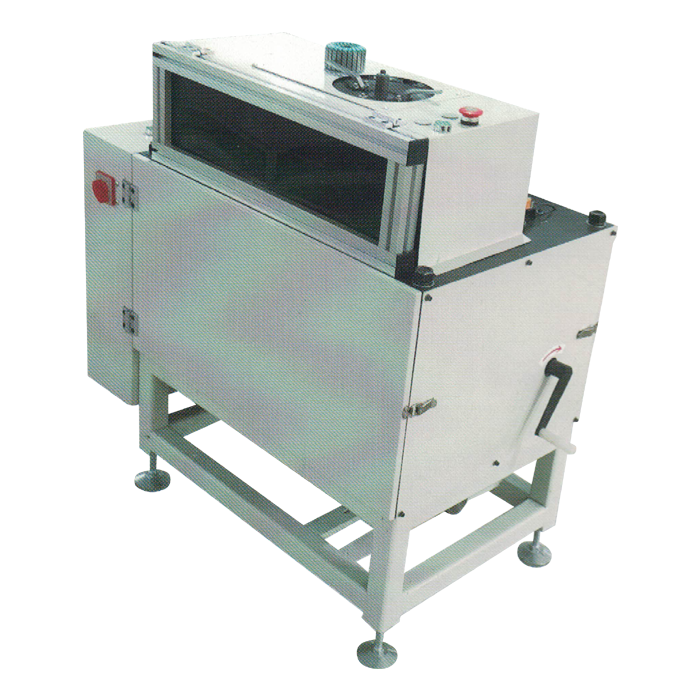

Slot Insulation Paper Machine for Fan Motor

Name: Slot Insulation Paper Machine for Fan Motor
Stator stack height: 10-100mm
Max Stator O.D.: Φ120mm
Stator I.D. range: Φ40-Φ100mm
Height of edge folded: 2-4mm
Thickness of insulation paper: 0.15-0.3mm
Paper feeding length: 15-40mm
Production rate: 0.7-1.0 second/slot
Air pressure: 0.5-0.8MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 1.15KW
Dimension: 1000 x 960 x 1000mm (L x W x H)
Weight: 400KG

This machine is used for the insulation paper cutting, forming and inserting into the stator slots to all kinds of motor stators, to isolate the stator slots against motor windings.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
