Motor slot insulation machine

Slot insulation paper machine for motor

Used for: Motor Stator
Feeding paper: Servo
Product description: China Apex provides automatic motor winding machine,stator coil winding machine,rotor winding machine, stator coil production line, motor winding & inserting machine,motor slot insulation paper machin
INQUIRY

Slot insulation paper machine for motor

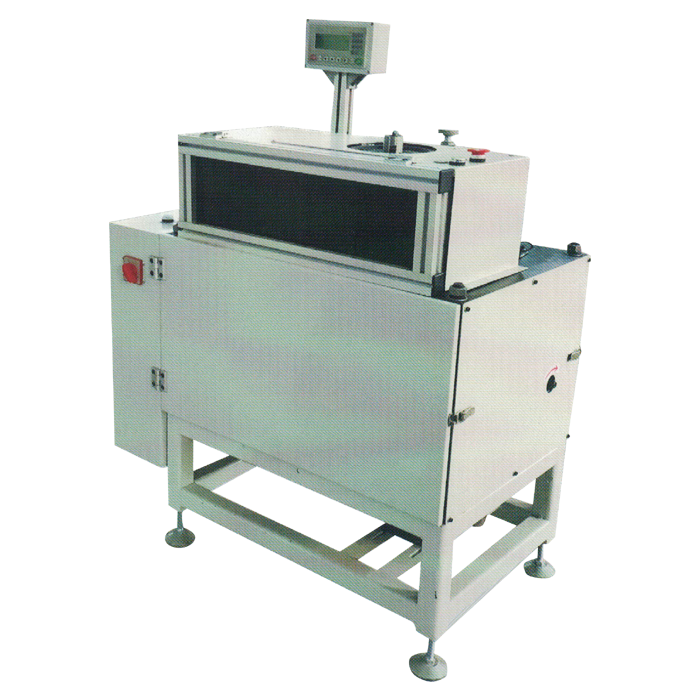

Name: Single head Slot Insulation Paper Machine
Stator stack height: 15-90mm
Max Stator O.D.: Φ160mm
Stator I.D. range: Φ48-Φ90mm
Height of edge folded: 2-4mm
Thickness of insulation paper: 0.15-0.3mm
Paper feeding length: Servo feeding
Production rate: 0.4-0.5 second/slot
Air pressure: 0.5-0.8MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 1.95KW
Dimension: 1000 x 960 x 1000mm (L x W x H)
Weight: 460KG

This machine is used for the insulation paper cutting, forming and inserting into the stator slots to all kinds of motor stators, to isolate the stator slots against motor windings.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
