Motor stator coil inserting machine

Coil inserting machine for motor stator

Used for: Motor Stator
Product description: China Apex provides automatic motor winding machine,stator coil winding machine,rotor winding machine,stator coil production line,coil inserting machine,motor slot insulation paper machine
INQUIRY

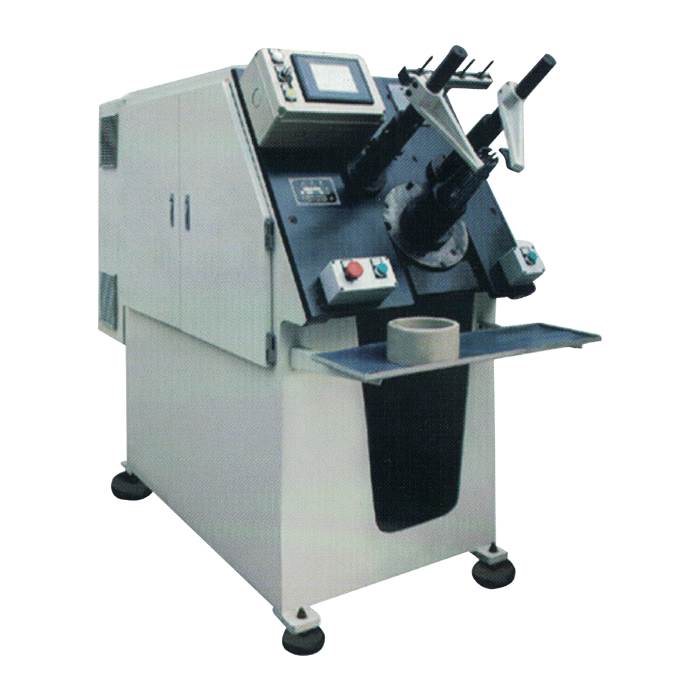

Servo Coil Inserting Machine for Motor Stator

Name: Servo Coil Inserting Machine for Motor Stator
Stator stack height: 5-130mm / 5-230mm
Max Stator O.D.: Φ160mm / Φ250mm
Stator I.D. range: Φ17-Φ100mm / Φ17-Φ160mm
Production rate: 0.4-1.5 second/slot
Air pressure: 0.5-0.8MPa
Power supply: 380v/50-60HZ, 3 Phase, 4-wire
Power: 2.5KW
Dimension: 1800 x 750 x 1600mm (L x W x H)
Dimension: 1950 x 750 x 1670mm (L x W x H)
Weight: 1000KG / 1050KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
