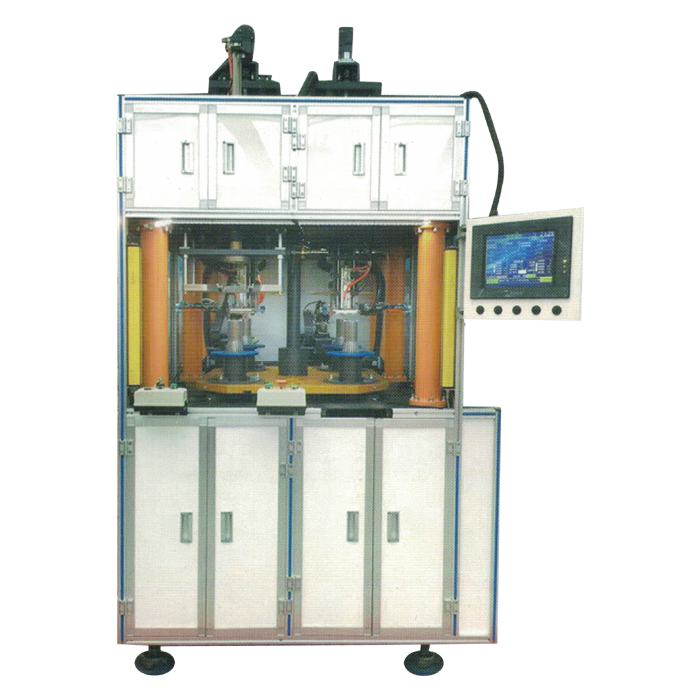

Motor coil winding and inserting machine

Motor coil winding and inserting machine

1. Name: Coil winding and inserting machine

2. Wire diameter range: 0.18-0.93mm

3. Stator stack height: 25-105mm

4. Max. Winding speed: 2000-3000r/min

5. Max. Coil segments: 5

6. Suitable motor poles: 2, 4, 6, 8

7. Air pressure: 0.5-0.8MPa

8. Power supply: 380v/50HZ, 3 Phase, 4-wire

9. Power: 7.5KW

10. Dimension: 1900 x 1350 x 2300mm (L x W x H)

11. Weight: 1500KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
