Motor stator rotor coil winding machine

External motor winding machine

Used for: Motor Rotor
Power: 1.5KW
Product description: China Apex provides automatic motor winding machine multi-working-station, motor stator coil winding machine, rotor winding machine, stator coil production line, motor coil insertion, motor mould
INQUIRY

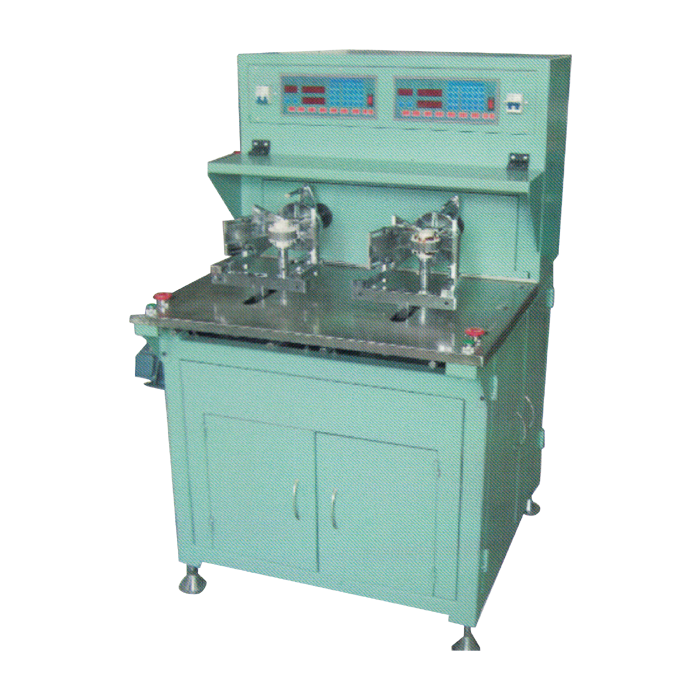

External-style motor rotor winding machine

External motor winding machine: 0.3-11mm
Max. Rotor O.D: Φ180mm
Rotor core stack height: 50-160mm
Number of rotor slots: 2-4-6
Max. Winding speed: 1200r/min / 2000r/min
Air pressure: 0.4-0.7MPa
Power supply: 220v/50HZ
Power: 1.5KW
Dimension: 1342 x 1090 x 1540mm (L x W x H)
Weight: 500KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
