Semi-auto motor coil winding machine

Used for: Motor Stator
Product description: China Apex provides automatic motor winding machine, motor stator winding machine, coil winding machine, stator coil production line, motor inserting machine, semi-auto coil machine
INQUIRY

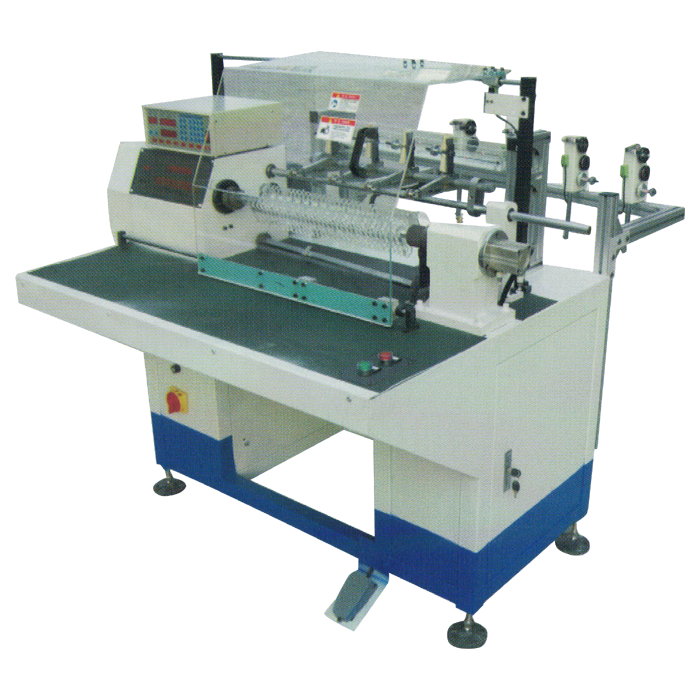

Semi-auto motor coil winding machine

Name: Semi-auto motor coil winding machine
Wire diameter range: 0.15mm / 0.3-1.6mm
Wire winding diameter: ≤240mm / ≤380mm
Effective distance between winding shafts: 520mm / 520mm
Distance of skip classes: ≤260mm / ≤220mm
Max. Winding speed: 2600r/min / 900r/min
Air pressure: 0.4-0.7MPa
Power supply: 220v/50HZ
Power: 0.75KW / 1.5KW
Dimension: (RX-001) 1650 x 950 x 1600mm (L x W x H)
Dimension: (without wire rack) 1600 x 1440 x 1180mm (L x W x H)
Weight: 550KG / 700KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
