Motor stator rotor coil winding machine

coil winding machine 8-station

Used for: Motor Stator
Working station: Eight
Product description: China Apex provides automatic motor winding machine multi-working-station, stator winding machine, motor coil winding machine, stator coil production line, motor manufacturing
INQUIRY

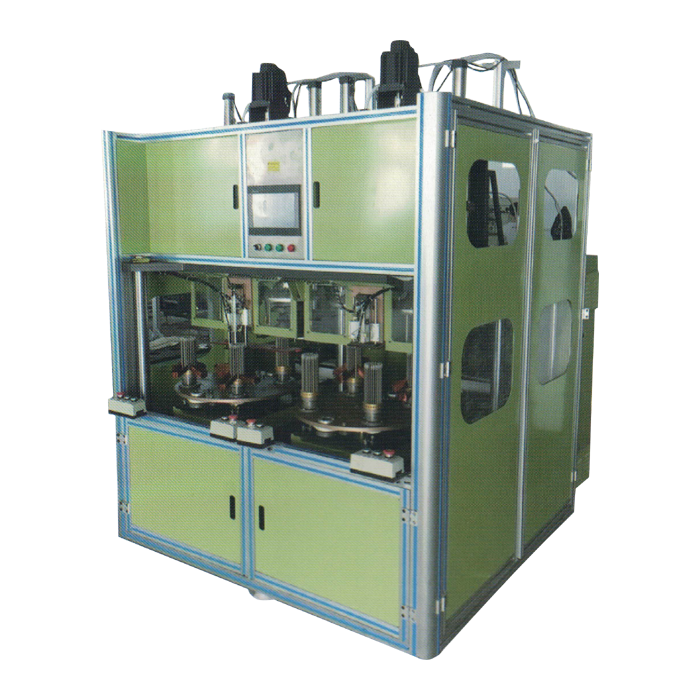

Automatic motor coil winding machine (with 8-working-station)

Name: Automatic motor stator coil winding machine (with 8-working-station)
Wire diameter range: 0.15-1.5mm
Stator stack height: 15-50mm / 15-120mm
Max. Winding speed: 1500-3000r/min
Max. Coil segments: 5
Suitable motor poles: 2, 4, 6, 8
Air pressure: 0.4-0.6MPa
Power supply: 380v/50HZ, 3 Phase, 4-wire
Power: 13.5KW
Dimension: 2250 x 1250 x 2150mm (L x W x H)
Weight: 3200KG

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry, or contact us directly!
