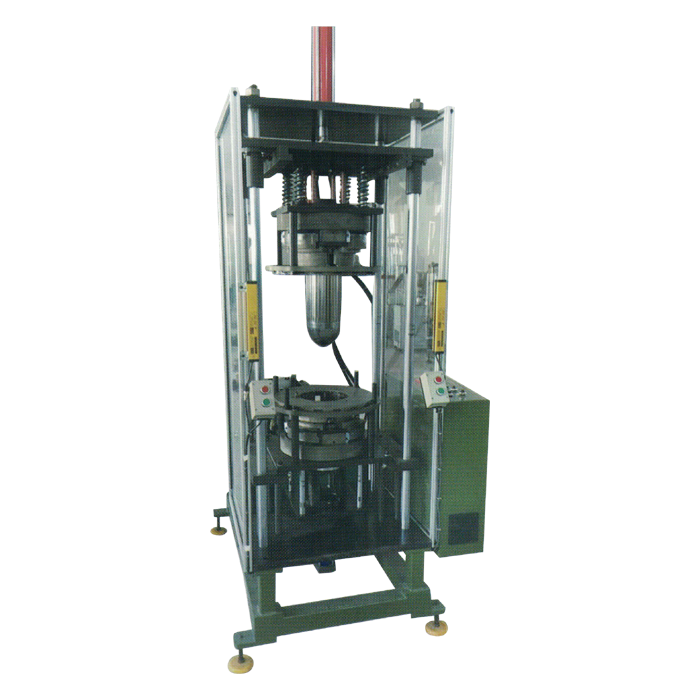

Motor coil middle forming shaping machine (with cuff)

Hydraulic motor coil middle forming shaping machine (with cuff)

1. Name: Hydraulic motor coil middle forming machine (with cuff)
2. Stator stack height: 15-160mm / 15-200mm
3. Stator I.D.: Φ30-Φ85mm / Φ85-Φ140mm
4. Stator O.D.: Φ60-Φ140mm / Φ140-Φ210mm
5. Displacement of oil pump: 30F
6. Production rate: 18 seconds per pcs
7. Power supply: 380v/50-60HZ, 3 Phase, 4-wire
8. Power: 3.75KW / 4.25KW
9. Dimension: 1500 x 1050 x 3000mm (L x W x H)
10. Weight:  1250KG / 1300KG

This machine is used for coil forming after coil insertion. The outer diameter, inner diameter and height of stator end coil can be close to the required size through initial extrusion, and the root of end coil can be treated by cuff / tooth guard, which is good and useful to the next coil lacing process
