Pre-forming machine for motor coil insertion

Pre-forming machine for motor coil insertion

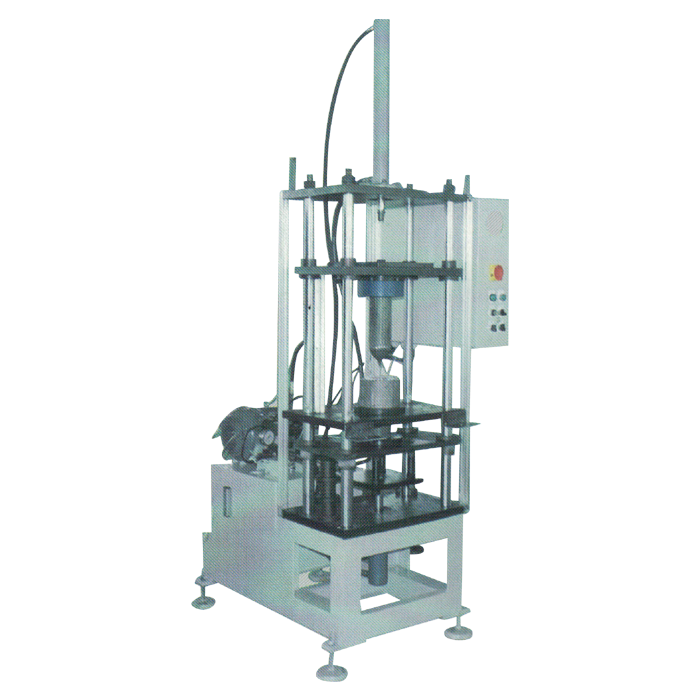

1. Name: Pre-forming machine for motor coil insertion
2. Stator stack height: 12-165mm
3. Stator I.D.: Φ18-Φ120mm
4. Stator O.D.: Φ30-Φ190mm / Φ30-Φ260mm
5. Displacement of oil pump: 20F
6. Production rate: 10 seconds per pcs
7. Power supply: 380v/50-60HZ, 3 Phase, 4-wire
8. Power: 1.5KW
9. Dimension: 1120 x 860 x 2550mm (L x W x H)
10. Weight: 720KG

This pre-forming machine is used for the preparation process of secondary coil insertion process. Its working principle is that after the first coil insertion, all the coils covered on the slot are expanded through the expansion blade of the tooling, so as to save the slot space for the second or third coil insertion.
