Motor coil middle forming machine
Motor coil middle forming shaping Machine (without cuff)
- Used for: Motor Stator
- Motor coil middle forming
- Motor coil middle shaping
- Product description: China Apex provides motor winding machine,stator coil winding machine,Motor coil wire inserting machine,stator production line,motor slot insulation paper machine, coil forming shape machine

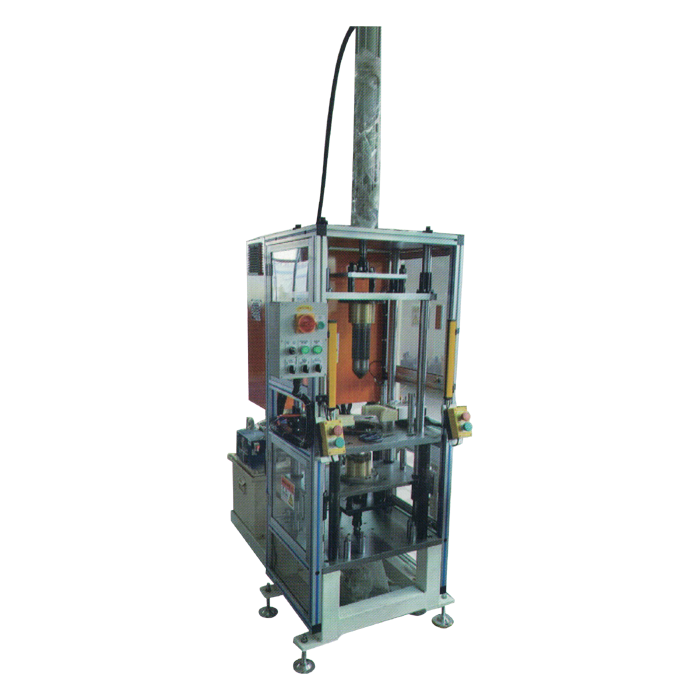

Hydraulic motor coil middle forming shaping Machine (without cuff)
- Name: Hydraulic motor coil middle forming shaping Machine
- Stator stack height: 12-200mm
- Stator I.D.: Φ35-Φ160mm
- Stator O.D.: Φ60-Φ260mm
- Displacement of oil pump: 20F
- Production rate: 10 seconds per pcs
- Power supply: 380v/50-60HZ, 3 Phase, 4-wire
- Power: 1.5KW
- Dimension: 1120 x 860 x 2550mm (L x W x H)
- Weight: 750KG
All the technical parameters can be designed and manufactured according to customer's request.
If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
