Motor coil final forming machine

  • Coil final forming shaping Machine (without cuff)
Coil final forming shaping Machine (without cuff)

Coil final forming shaping Machine (without cuff)

  • Used for: Motor Stator
  • Product description: China Apex provides motor winding machine,stator coil winding machine, wire inserting machine,stator production line, slot insulation paper machine,forming shape machine, lacing machine
  • INQUIRY

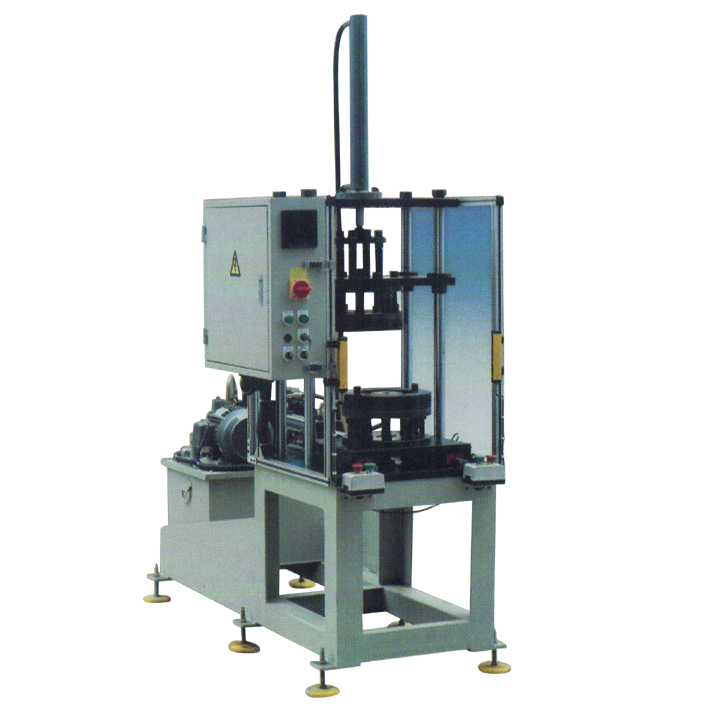

Hydraulic motor coil final forming shaping Machine (without cuff)
  1. Name: Hydraulic motor coil final forming shaping Machine (without cuff)
  2. Stator stack height: 12-200mm
  3. Stator I.D.: Φ20-Φ120mm
  4. Stator O.D.: Φ40-Φ190mm
  5. Displacement of oil pump: 20F / 30F
  6. Production rate: 10 seconds per pcs
  7. Power supply: 380v/50-60HZ, 3 Phase, 4-wire
  8. Power: 1.15KW / 3.75KW
  9. Dimension: 1080 x 860 x 2400mm (L x W x H)
  10. Weight: 850KG
This machine is used for the final forming of motor stator. The outer diameter, inner diameter and height of stator end coil are extruded through OD forming slider and ID forming expanding core to achieve the required coil size and meet the motor assembly conditions.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
