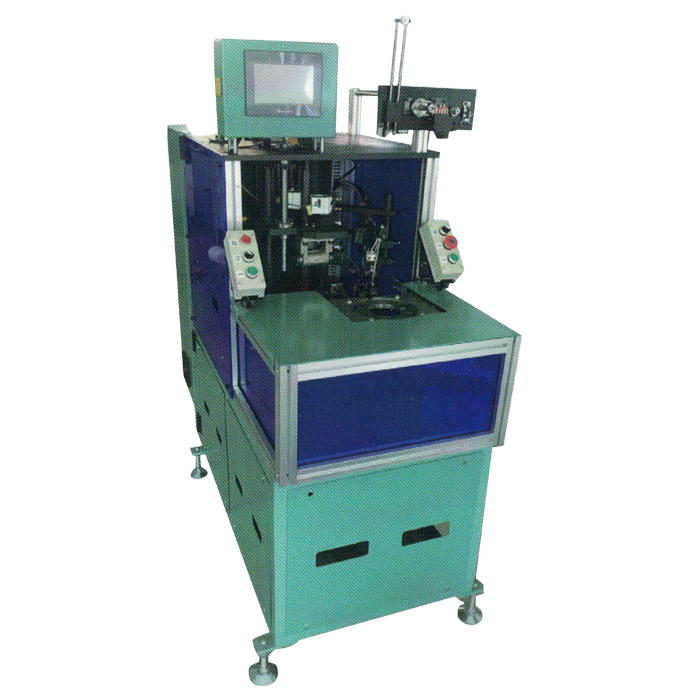

Double-head motor coil lacing machine (servo)

1. Name: Double side motor coil lacing machine (servo)
2. Stator core stack height: 15-120mm / 15-180mm
3. Stator core I.D.: ≥Φ30mm
4. Stator core O.D.: ≤Φ190mm
5. Lacing mode: Slot by slot / slot-skipping / fancy lacing
6. Lacing speed: 0.2-0.4second per needle / 0.5-0.7second per needle
7. Coil height: ≤55mm
8. Air pressure: 0.4-0.7MPa
9. Power supply: 220v/50-60HZ 380v/50-60HZ
10. Power: 3.0KW / 3.1KW
11. Dimension: 1460 x 620 x 1550mm(L x W x H) / 1690x710x1680mm(L x W x H)
12. Weight: 900KG / 950KG

This machine is used for the coil lacing(fixing) of stator which is fixed with outlet lines. It could do slot by slot / slot skipping lacing through each parameter setting in the HMI (Human Machine Interface), which makes stator coil good appearance and compaction.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
