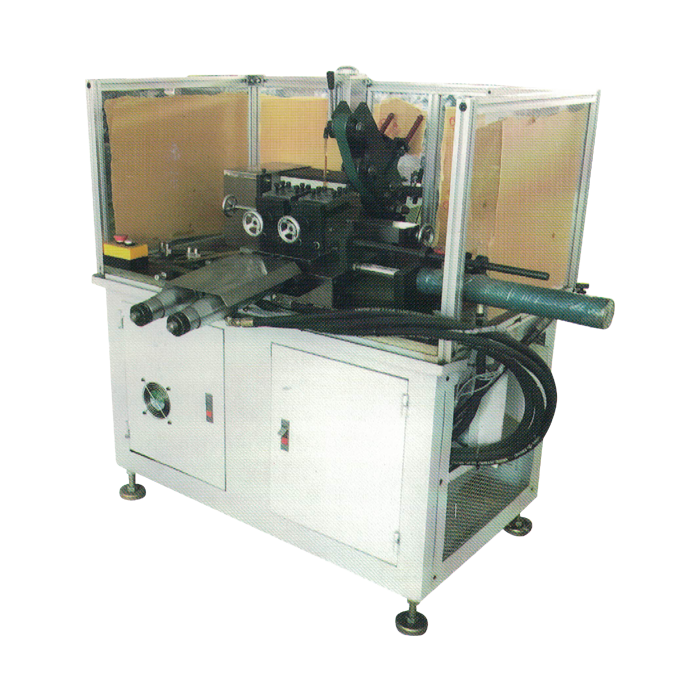

Motor rotor turning machine (Double servo)

1. Name: Motor rotor turning machine (Double servo)
2. Max rotor O.D.: 20-85mm
3. Max. Stack height of rotor: 100mm
4. Accuracy: 0.02/100mm
5. Max feed volume: Φ0.6
6. Production rate: 30 seconds /100mm
7. Air pressure: 0.4-0.6MPa
8. Power supply: 380v/50-60HZ
9. Power: 1.5KW
10. Dimension: 900 x 800 x 1600mm(L x W x H)
11. Weight: 400KG

The machine adopts full servo control system to complete the rough turning and fine turning of motor rotor, so that the outer diameter size meets the motor assembly requirements.

All the technical parameters can be designed and manufactured according to customer's request.

If you are interested in this kind of motor winding machine, please send us inquiry or contact us directly!
