Motor insulation paper forming cutting Machine ​

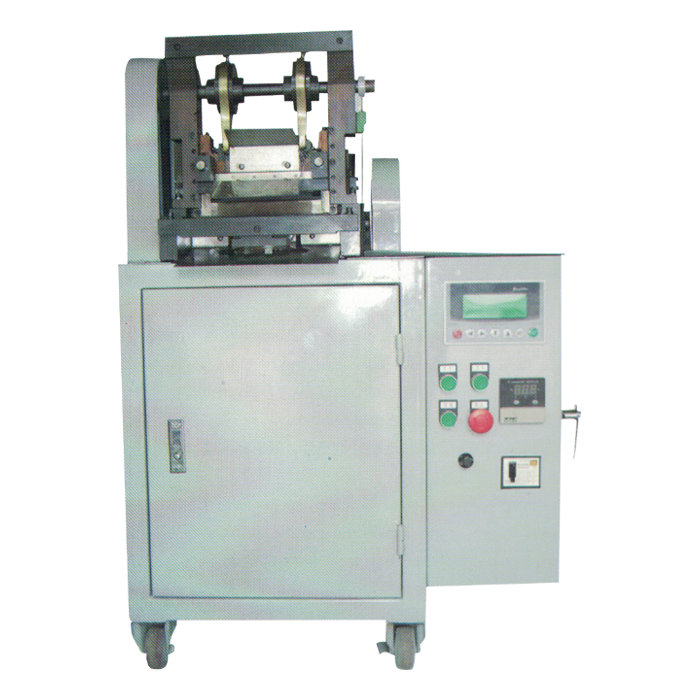

160/360/600 Motor Insulation Paper Forming Cutting Machine

1. Name: 160/360/600 Motor Insulation Paper Forming Cutting Machine
2. Stator stack height: 20-160mm / 20-360mm / 20-550mm
3. Height of edge folded: 2-4mm / 4-8mm
4. Material thickness: 0.125-0.5mm
5. Power supply: 220v
6. Power: 2KW

7. A type: cut length 22-45mm, cut width 25-160mm, fold wdith 2-4mm
   Dimension: 750 x 500 x 1100mm (L x W x H)  Weight: 180KG

8. B type: cut length 38-80mm, cut width 30-360mm, fold width 4-8mm
   Dimension: 975 x 740 x 1197mm (L x W x H)  Weight: 280KG

9. C type: cut length 50-120mm, cut width 100-700mm, fold width 7-15mm
   Dimension: 1360 x 1050 x 1290mm (L x W x H)  Weight: 400KG



The machine adopts mechanical drive system, stepping motor drive system and adjustable deceleration system. PLC integrated control can continuously and automatically complete slot insulating paper / wedge edge folding, fixed length feeding and cutting. The machine adopts touch man-machine interface and has the functions of status display, fault alarm, various parameter settings and so on.
